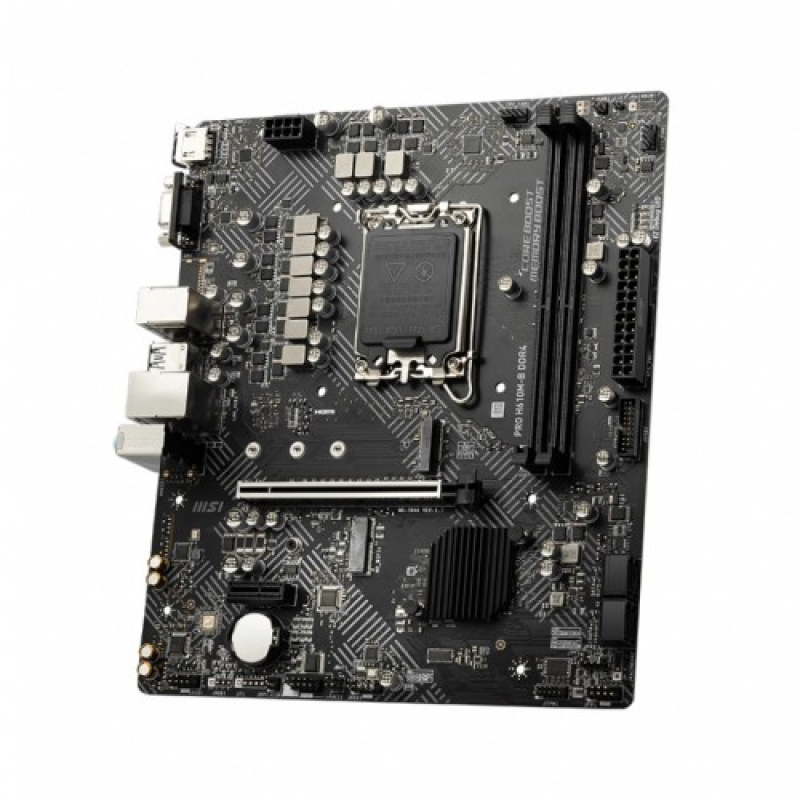

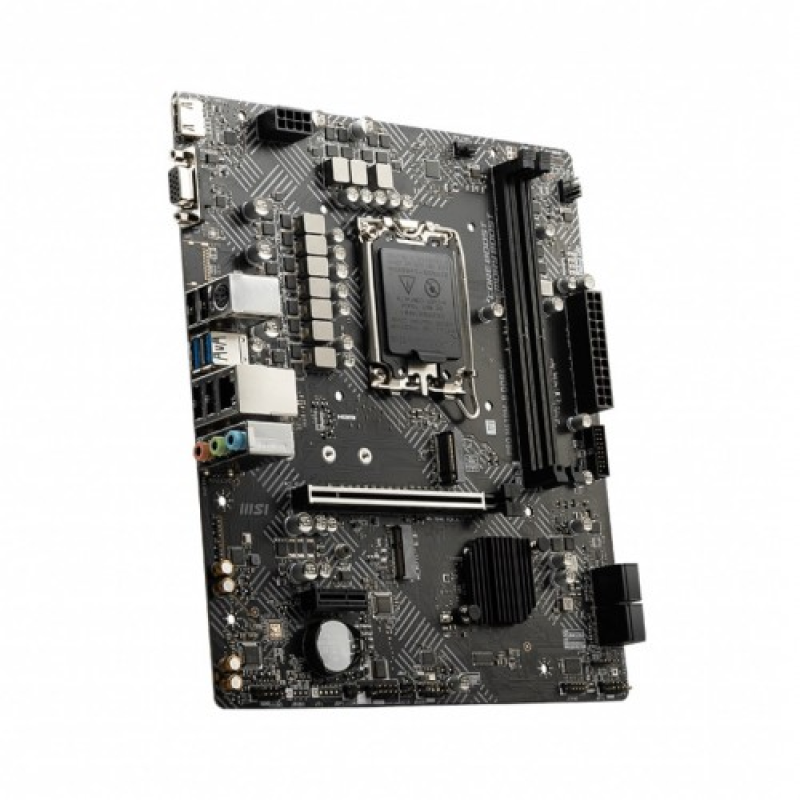

MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard

Regular Price	10,300৳
Product Code	109
Brand	MSI

Short Details

Model: PRO H610M-B DDR4
Supports 12th Gen Intel Core, Pentium Gold & Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Lightning Fast Experience: PCIe 4.0
Core Boost, Memory Boost, Audio Boost

More Info

10300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700
Chipset	Intel H610 Chipset
Form Factor	M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Audio	Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Support up to 64GB
Graphics
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI	1x HDMI 2.1
VGA (s)	1x VGA port
USB (s)	Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)	1x Intel I219V 1Gbps LAN controller
Supported Storage	1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
Internal I/O Ports	POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 4x EZ Debug LED
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 years

Description

MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard

The MSI PRO H610M-B DDR4 features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays. The MSI PRO H610M-B DDR4 motherboard comes with 3 years of warranty.

What is the price of MSI PRO H610M-B DDR4 12th Gen Motherboard in Bangladesh?

The latest price of MSI PRO H610M-B DDR4 12th Gen Motherboard in Bangladesh is 10,300৳. You can buy the MSI PRO H610M-B DDR4 12th Gen Motherboard at best price from our website or visit any of our showrooms.
