MSI MEG Z790 ACE MAX DDR5 E-ATX Motherboard

Regular Price	76,500৳
Status	In Stock
Product Code	5683
Brand	MSI

Short Details

Model: MEG Z790 ACE MAX
Supported CPU: 14th/ 13th /12th Gen Intel Core / Pentium / Celeron processors (LGA 1700)
Supported RAM: 4x DDR5, Max 192GB, 7800+MHz (OC)
Graphics Output: 1x Type-C DisplayPort
Features: Dual 2.5Gbps LAN with latest Wi-Fi 7, Dual Thunderbolt 4

More Info

76500৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL Z790
Form Factor	E-ATX 277mmx304.8mm
Audio	Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	192GB
Graphics
Graphics	1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz
Connector & Ports
Display Port (s)	1x Type-C DisplayPort

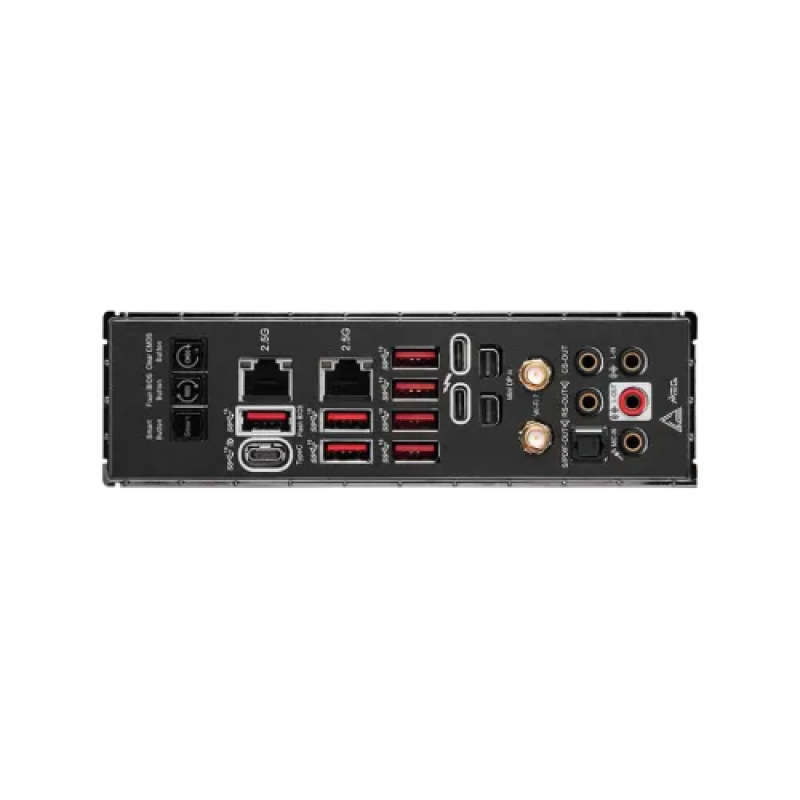

USB (s)	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front)
LAN Port (s)	2x Intel 2.5Gbps LAN
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2x2 Type C ports V-check point 1x ARGB+FAN Header (JAF_1)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED
Warranty Information
Manufacturing Warranty	3 years

Description

MSI MEG Z790 ACE MAX DDR5 E-ATX Motherboard

The MSI MEG Z790 ACE MAX DDR5 E-ATX Motherboard is a technical marvel, supporting 14th, 13th, and 12th Generation Intel Core, Pentium, and Celeron CPUs via its LGA 1700 socket. With four DDR5 RAM slots supporting a maximum capacity of 192GB and an exceptional overclocking potential of 7800+MHz (OC), this motherboard is designed to fulfill the needs of high-performance computing. This results in a dynamic and responsive system that can easily handle resource-intensive operations. The motherboard has a Type-C DisplayPort for graphics output, providing a contemporary and adaptable method for connecting monitors with better visual fidelity. Dual 2.5Gbps LAN, paired with the most recent Wi-Fi 7 technology, guarantees lightning-fast and dependable network access. Whether you're playing competitive online games or working on data-intensive jobs, this motherboard has the bandwidth and stability you need for a smooth experience. The MSI MEG Z790 ACE MAX's support for Dual Thunderbolt 4 is one of its notable features, offering high-speed data transmission and diverse networking choices. Thunderbolt 4 technology increases the adaptability of the motherboard by allowing users to connect a wide range of peripherals and devices with ease. The MSI MEG Z790 ACE MAX DDR5 E-ATX Motherboard is designed for enthusiasts and power users that want a high-end computing experience. Its combination of cutting-edge technology, wide networking choices, and outstanding performance capabilities make it an excellent choice for individuals who want nothing less than the best from their system. Whether for gaming, content production, or professional applications, this motherboard demonstrates MSI's dedication to providing high-quality hardware solutions.

What is the price of MSI MEG Z790 ACE MAX DDR5 E-ATX Motherboard in Bangladesh?

The latest price of MSI MEG Z790 ACE MAX DDR5 E-ATX Motherboard in Bangladesh is 77,000৳. You can buy the MSI MEG Z790 ACE MAX DDR5 E-ATX Motherboard at best price from our website or visit any of our showrooms.
