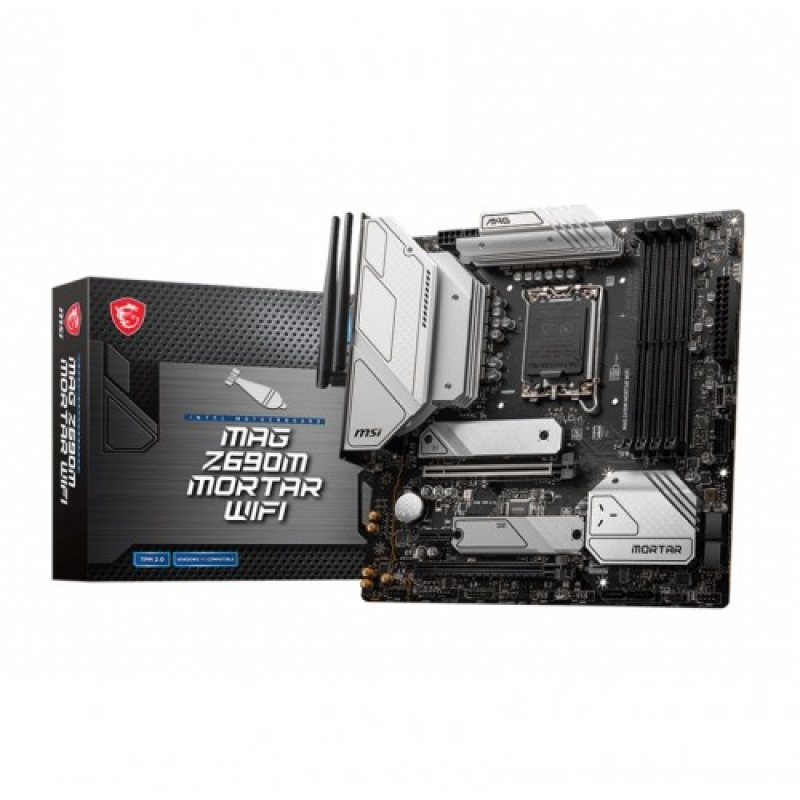

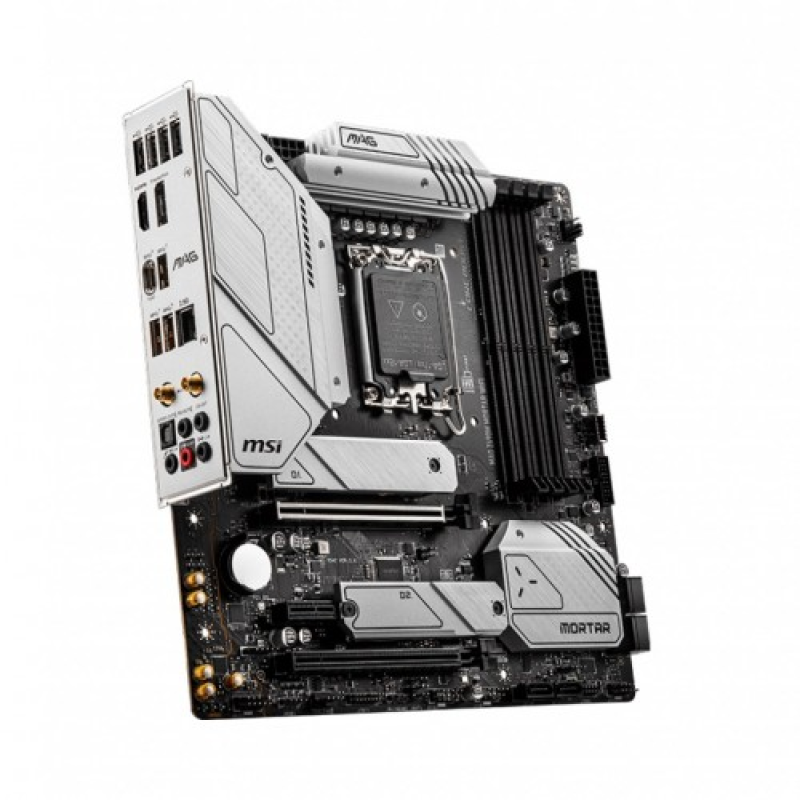

MSI MAG Z690M MORTAR WIFI Micro-ATX Motherboard

Regular Price	25,300৳
Product Code	5309
Brand	MSI

Short Details

Model: MAG Z690M MORTAR WIFI
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supports DDR5 Memory, up to 6200+(OC) MHz
Steel armor PCIe slots. Supports AMD Crossfire
2.5G LAN and Intel Wi-Fi 6E Solution

More Info

25300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700
Chipset	Intel Z690 Chipset
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology

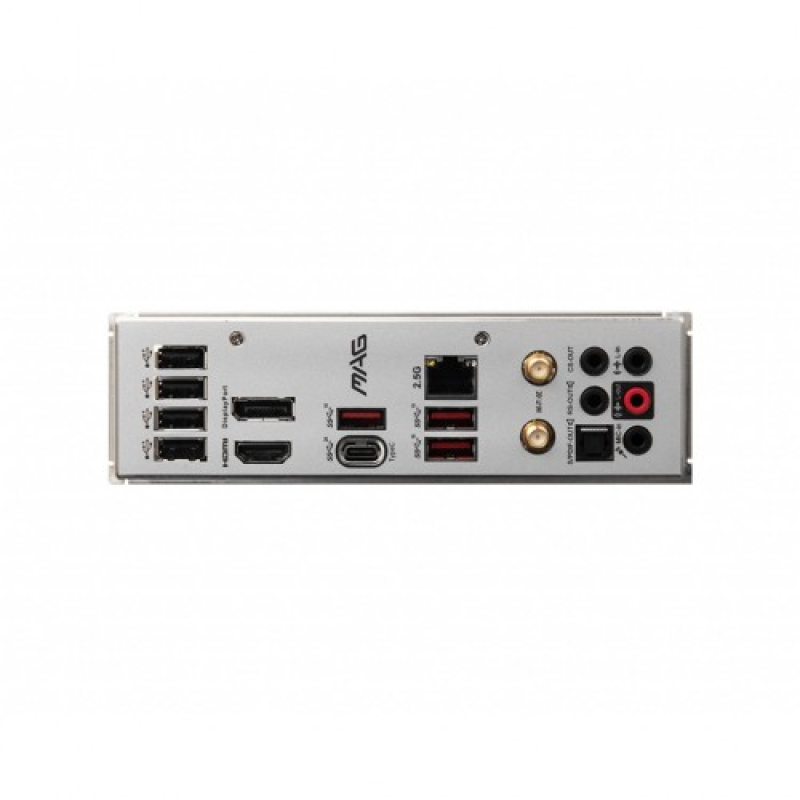

Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4
USB (s)	Intel Z690 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
LAN Port (s)	1x Realtek 8125BG 2.5Gbps LAN controller
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA
Supported Storage	4x SATA 6Gb/s ports (SATA5~8, from Z690 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 years

Description

MSI MAG Z690M MORTAR WIFI Micro-ATX Motherboard

The MSI MAG Z690M MORTAR WIFI Motherboard supports 14th, 13th & 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6666+(OC) MHz. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, MAG Z690M MORTAR WIFI is ready to deliver world-class memory performance. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects can be controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips, and Ambient devices. The MSI MAG Z690M MORTAR WIFI comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MAG Z690M MORTAR WIFI comes with 3 years of warranty.

What is the price of MSI MAG Z690M MORTAR WIFI Motherboard in Bangladesh?

The latest price of MSI MAG Z690M MORTAR WIFI Motherboard in Bangladesh is 25,500৳. You can buy the MSI MAG Z690M MORTAR WIFI Motherboard at best price from our website or visit any of our showrooms.
