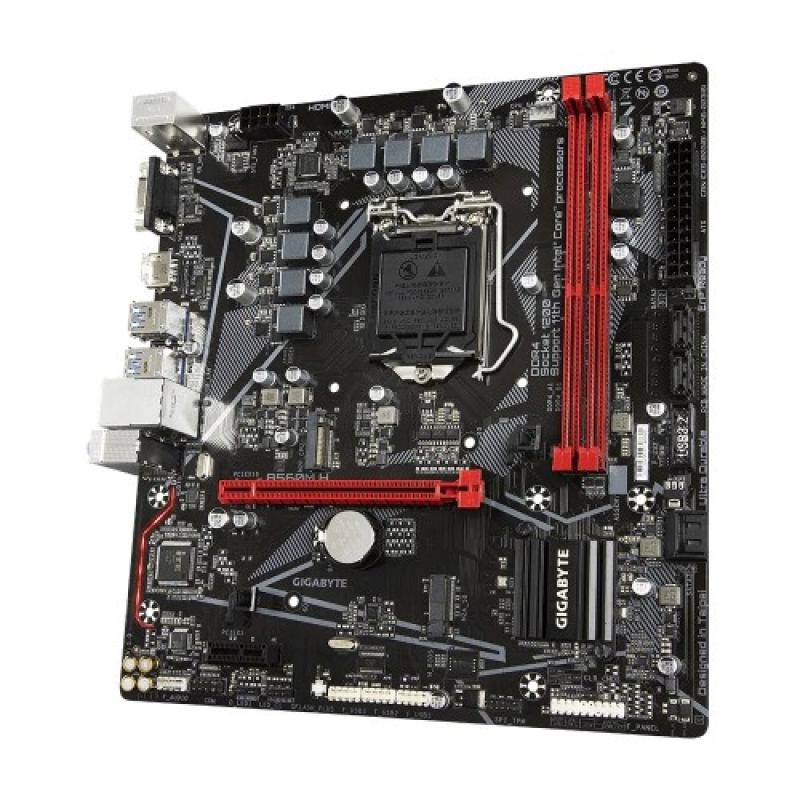

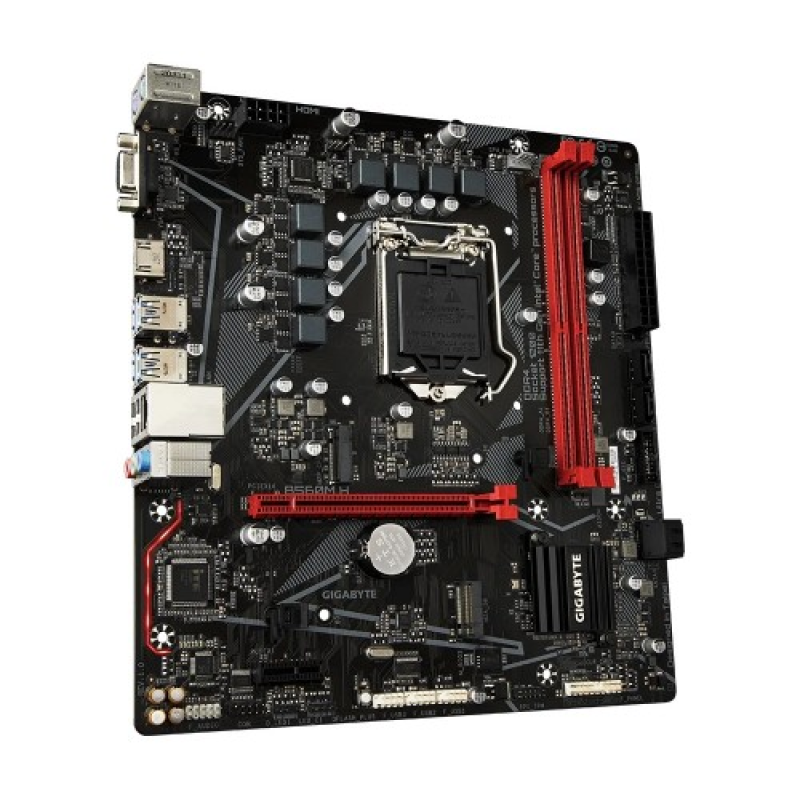

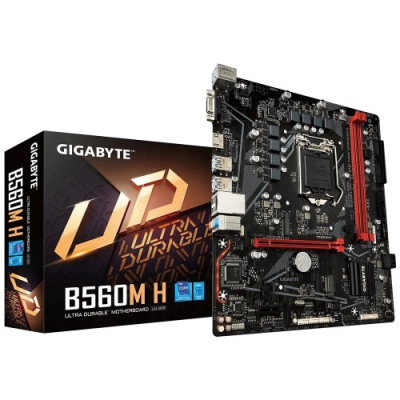

GIGABYTE B560M H Intel 10th and 11th Gen Micro ATX Motherboard

Regular Price 11,000৳
Product Code 74
Brand Gigabyte
Short Details
  • Model: B560M H
  • Supports 11th and 10th Gen Intel Core Processors
  • Direct 6+2 Phases Digital VRM
  • Dual Ultra-Fast NVMe PCIe 4.0
  • Exclusive 8118 Gaming LAN
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Basic Information
Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset Intel B560 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
1 x PCI Express x1 slot (PCIEX1)
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
M.2 Socket CPU:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 11th Generation Intel Core i9/ i7/ i5 processors:
Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64 GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

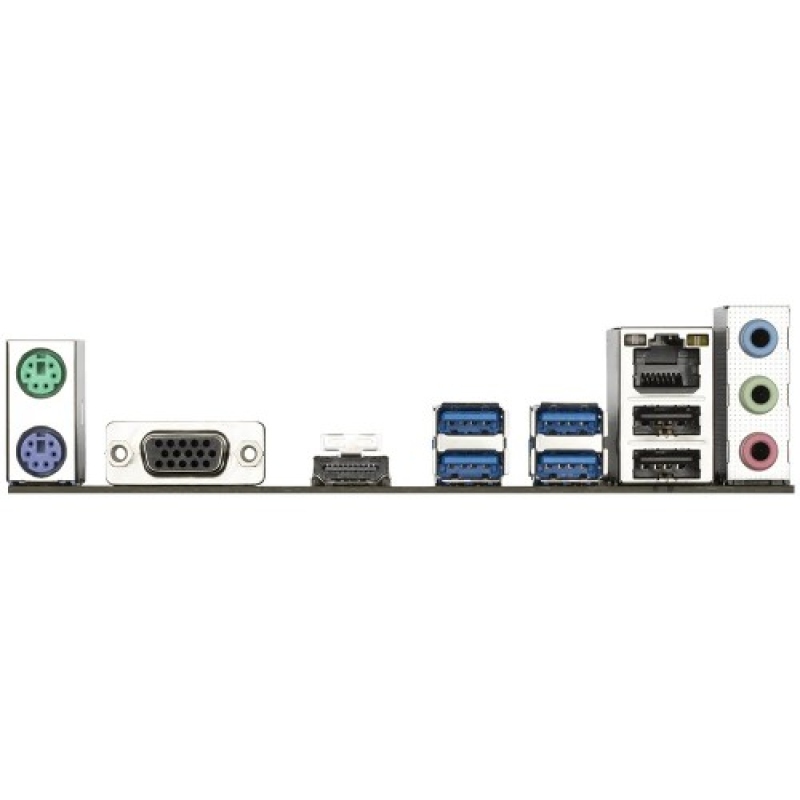

Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
USB (s) Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset + USB 2.0 Hub:
8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbit/100 Mbit)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
4 x SATA 6Gb/s connectors
Intel Optane Memory Ready
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 year

Description

GIGABYTE B560M H Ultra Intel 10th and 11th Gen Micro ATX Motherboard

GIGABYTE B560M H Intel 10th and 11th Gen Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors. It has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features direct 6 + 2 Phases Digital VRM with Low RDS(on) MOSFETs. It has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It is powered by an Exclusive 8118 Gaming LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard It comes with Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices. It has pre-installed IO Shield for Easy and Quick Installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 Years Warranty.

What is the price of GIGABYTE B560M H 11th Gen Motherboard in Bangladesh?



The latest price of GIGABYTE B560M H 11th Gen Motherboard in Bangladesh is 11,200৳. You can buy the GIGABYTE B560M H 11th Gen Motherboard at best price from our website or visit any of our showrooms.
